Bay Tops

These are the most popular bays we offer. We can manufacture bays to suit most applications.

Please ask for further details.

Fitting our products saves our clients time and money and gives the client a maintenance free product.

Before placing an order:

1. Please read our terms and conditions.
2. Choose the correct colour (Click here to view).
3. Read the appropriate measuring instruction and fitting instruction.

CLICK IMAGE FOR SPECIFICATION SHEET

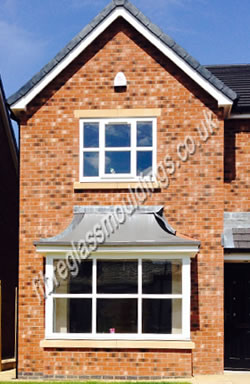

Bow Canopy Top

Click on Image for Specification Sheet

Roof Width

2310mm
2800mm
3140mm
3680mm

Soffit Width

1900mm
2400mm
2800mm
3400mm

Roof Projection

270mm
400mm
465mm
600mm

Bow Canopy Base

Click on Image for Specification Sheet

Roof Width

1900mm
2450mm
2790mm
3380mm

Soffit Width

295mm
400mm
470mm
585mm

Roof Projection

295mm
400mm
470mm
585mm

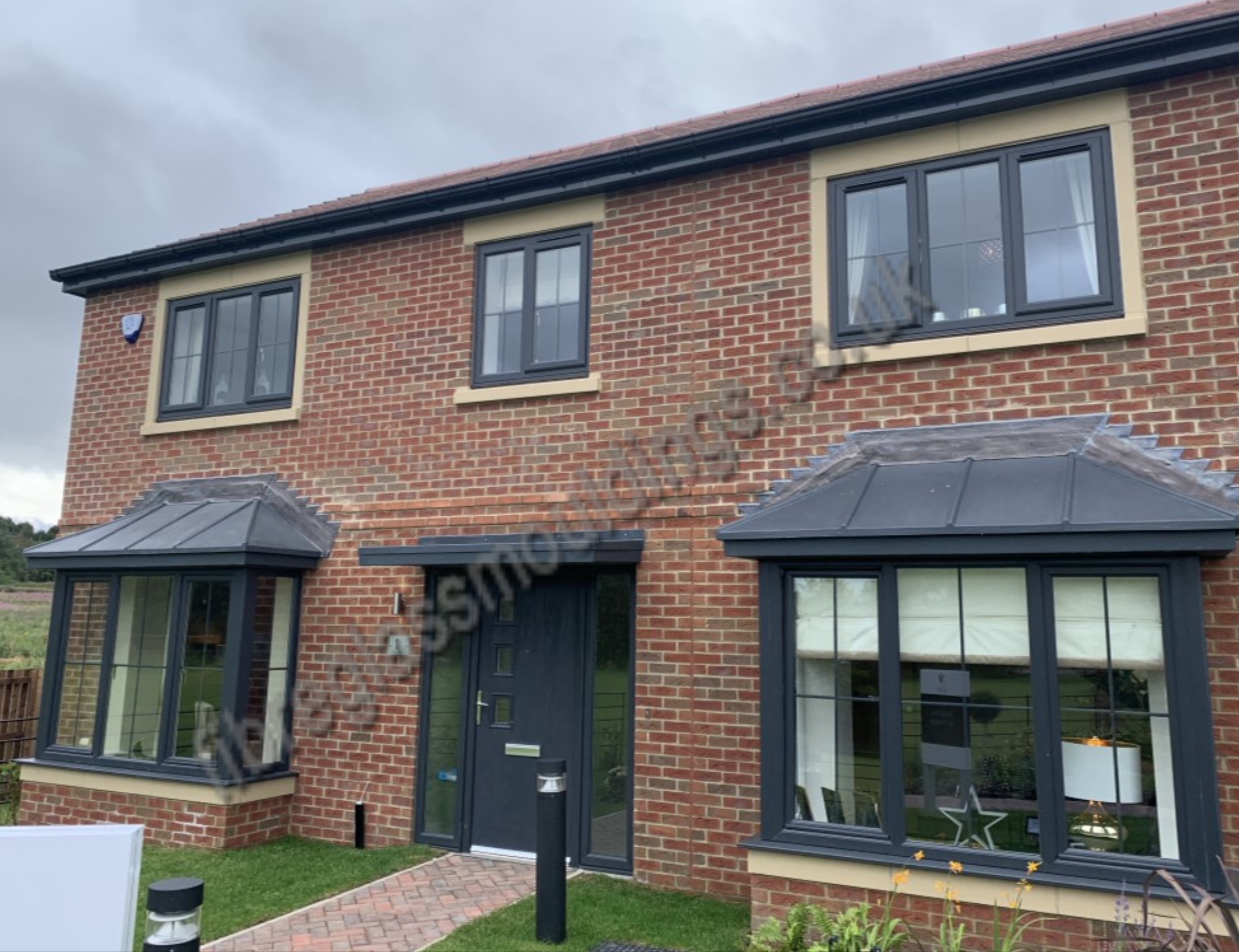

Hipped Bay Tops

Click on Image for Specification Sheet

Widest Point

2720mm
2840mm
2960mm
2960mm
2820mm
3000mm
3250mm
3000mm

Width Front

1300mm
1280mm
1530mm
1530mm
1420mm
1200mm
1200mm
1220mm

Projection

1050mm
720mm
700mm
700mm
660mm
450mm
860mm
450mm

Flat Angled Bay Tops

Click on Image for Specification Sheet

Widest Point

2720mm
2840mm
2960mm

Width Front

1300mm
1280mm
1530mm

Projection

1050mm
720mm
700mm

Mono Pitch Bay Top

Click on Image for Specification Sheet

Roof Width

1480mm
1730mm
2080mm
2380mm
2680mm
3080mm

Soffit Width

1400mm
1650mm
2000mm
2300mm
2600mm
3000mm

Roof Projection

1020mm
1020mm
1020mm
1020mm
1020mm
1020mm
